A Holistic Look at Storm Infrastructure

City of Larkspur Storm Drain Master Plan

Just west of the Richmond-San Rafael Bridge, Larkspur is a low-lying City prone to flooding during high tides and storms. Schaaf & Wheeler developed a comprehensive citywide Storm Drain ter Plan (SDMP) thatMas aims at reducing flooding issues, meeting drainage protections goals of the City and identifying future capital improvements to provide 10-year storm conveyance throughout the City.

Work on the plan began in the field collecting an inventory of the storm drain network of 19 miles including pipes and structures of various sizes and materials. Steep hillside development lacking formal drainage networks and complex system tie-ins with neighboring municipalities necessitated further review. Our engineers verified and supplemented the field data to create an existing conditions model of the drainage network using MIKE-URBAN. The identified system deficiencies and their costs guided the prioritization of flood mitigating improvements ranging from pipeline upsizing to new pump stations. The plan was adopted by the City in November of 2019.

During the SDMP study, Schaaf & Wheeler was also approached by the City to review a proposed system improvement adjacent to the Bon Air Bridge. This new stormwater pump station will collect runoff from Hillview neighborhood and eliminate five existing tidal outfalls. With the data collected and analyses conducted during the study, Schaaf & Wheeler was able to cost-effectively assess the system to aid improvements to the pump station and storm drain design with their client’s needs in mind.



Project Specifications

19 miles of pipes
5 storm drain pump stations

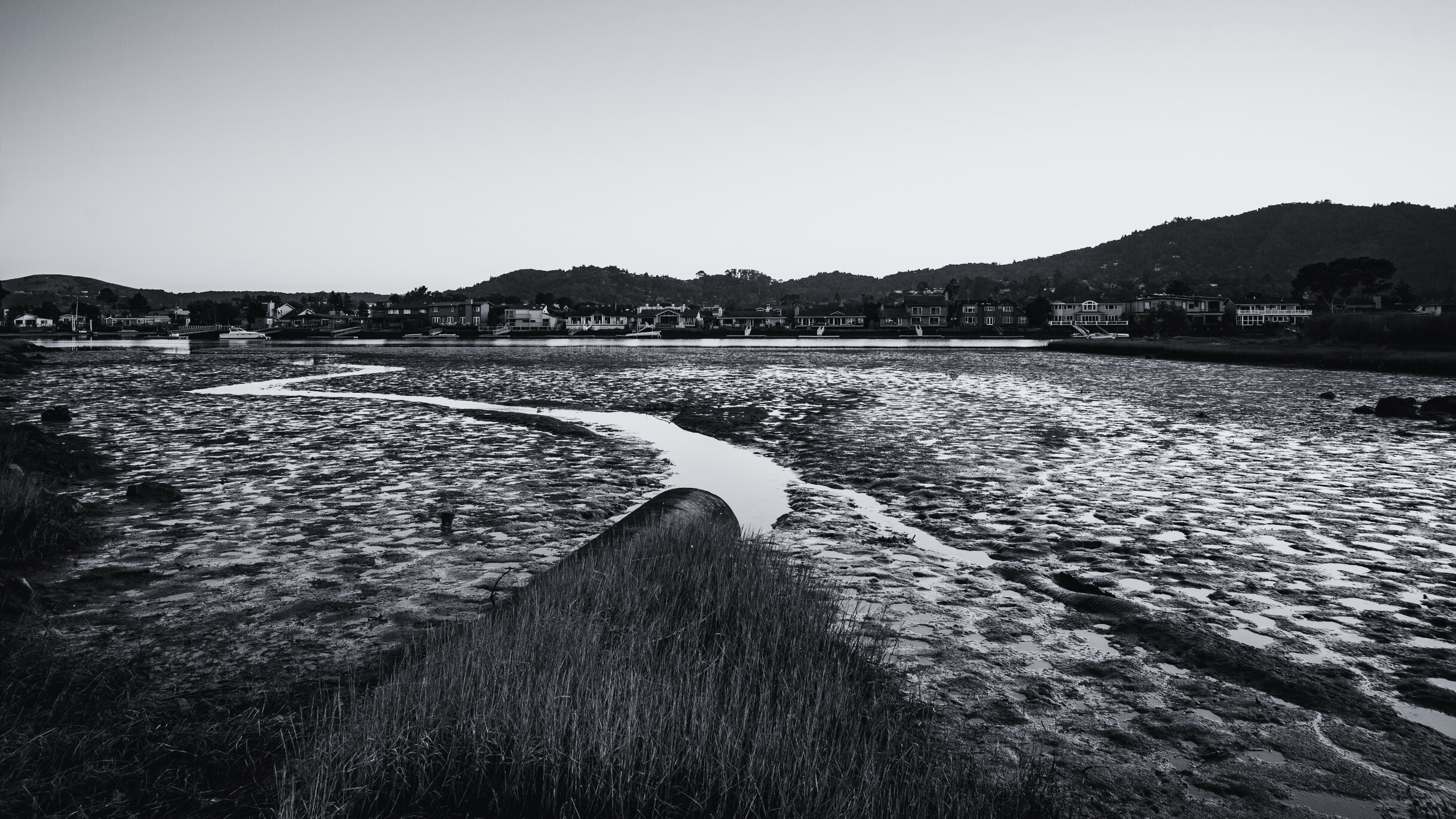

33 outfalls
3.2 sq-miles watershed
Schaaf Wheeler Larkspur

Project Details

Location:
Larkspur, Marin County
Client:
City of Larkspur
Services:
Master Planning
Modeling
Cost Estimation
Condition Assessment
Pump Station Evaluation
Capital Improvements Planning

Project Specifications

19 miles of pipes
5 storm drain pump stations
33 outfalls
3.2 sq-miles watershed
